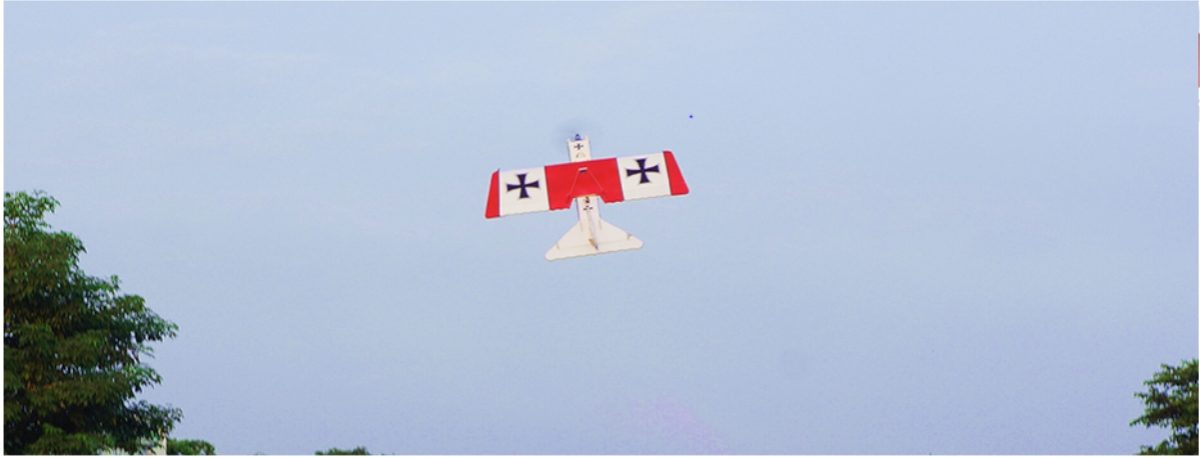

Bloody Baron Lasercut kit

1,900.005,900.00

The Bloody Baron is an extremely easy to build kit, that will take less than 3 hours to build  and a true Bank -n– Yank plane to fly. Small, portable and zippy to fly around in small parks and places, the Bloody Baron can be flown with streamers to do some combat flying with friends .

Clear

Bloody Baron

High Strength Paper Laminated Waterproof Foamboard

FliteBoard Pro is made up of 3/16″ (5MM) polystyrene (XPS) foam core, laminated on both sides with high quality super strong Poly-coated water resistant virgin Kraft paper making the Foam Boards lightweight, yet incredibly strong and completely water resistant. The paper lamination allows you to cut, score, fold, hinge easily to build popular RC models where you require a lightweight material that is durable and strong.

Extra strong Paper Laminated Foamboard

Alphaboards have a Bright white thick paper over the XPS Foam sheets. They are the strongest in our line up, but a bit heavy too. Extra strength ensures they can really take up a beating. Ideal to be used in the nose/belly area of an airplane, which is what gets stressed out the most.

Ultra Light Poly coated XPS Board

FliteBoard Lite+ is the lightest of the series made up of 3/16″ (5MM) Extruded Polystyrene (XPS) foam core, laminated on both sides with thin, light and clear lamination film. This yields an extremely lightweight water resistant board, that allows you to cut, score, fold, hinge easily to build popular RC models where weight is of utmost importance. Ideal for Tail surfaces and wings to get the CG right.

ft-explorer-banner-mobile-img



The Bloody Baron is an extremely easy to build kit, that will take less than 3 hours to build and a true Bank -n– Yank plane to fly. Small, portable and zippy to fly around in small parks and places, the Bloody Baron can be flown with streamers to do some combat flying with friends .

Can be built in a 3 Channel configuration (Aileron/Elevator/Throttle) for a true Bank-n-yank airplane, or with 4 channel with the rudder. With a powerful motor, Its fully capable of doing most of the basic aerobatics and can be used as a sport trainer airplane.

Put on some streamers, and its ready for some awesome combat flying. Fly with friends and with your local groups, this is one one plane to fly.

Recommended Equipment:

  • Motor: FC 2822-1200KV
  • ESC: 20 amp
  • Battery: 1000 mAH 3s
  • Servos: 9 gram X 2 (X 3 with Rudder)
  • Prop: 8 X 6

Specifications :

  • AUW: 550gms
  • Weight Without Battery: 420gms
  • Wingspan: 29.25in/762mm
  • Length: 24in/610mm
  • Wing Area: 243.89 in2 / 15.7 dm2
  • CG Location: 2.3in/58.7mm from the leading edge of the wing
  • WL: 10.06 oz./ft2 / 32.5 g/dm2
  • WCL: 8.2
  • Control Throws
    • Aileron: 200 Expo: 300
    • Elevator: 200 Expo: 300
    • Rudder: 200 Expo: 300

Whats Included :

  • Precision Laser-cut sheets (5 Nos.)
  • MDF Parts
    • Motor Mount
    • Control Horns (4)
  • Pushrods (4pcs) (30cm, 20cm, 16cmx2)
  • Velcro
  • Bamboo Skewers (4)
  • Pushrod guide
  • Paper knife
  • Decals
  • Data Sheet

Bloody Baron | Flite Test

Bloody Baron – BUILD | Flite Test

Expert Advice

Keep the speed up when flying this airplane. Fly it low, fly it fast, buzz around and have some fun ! Fly around with friends or chase them around with a simple FPV setup. This plane is just too much fun !

This kit has been based on the Flite Test plans freely available. Several modifications have been made to the original plans to suit the materials available to get the best performance/balance. For more information please read up here :

Kit Includes:
FliteBoard Pro Sheets:
Bloody Baron Laser cut FliteBoard Pro sheet
Bloody Baron Laser cut FliteBoard Pro sheet
Bloody Baron Laser cut FliteBoard Pro sheet
Bloody Baron Laser cut FliteBoard Pro sheet
Alphaboard Sheets:
bloody-baron-2
Bloody Baron Laser cut kit Alphaboard sheet
FliteBoard Lite Sheets:
Bloody Baron Laser cut kit FliteBoard Lite sheet
Bloody Baron Laser cut kit FliteBoard Lite sheet
Bloody Baron Laser cut kit FliteBoard Lite sheet
Bloody Baron Laser cut kit FliteBoard Lite sheet
Kit accessories:

data-sheet-bloody-baronDatasheet

Bloody Baron Kit Accessories
Bloody Baron Kit Accessories- Firewall, Pushrod guides and bamboo skewers
Packaging details:

We want the kits to reach you in perfect condition. Laser cut Foamboard sheets are first shrink-wrapped together . Then the Sheet pack + accessories are sealed in a poly bag. Which is further bubble wrapped, which then is packed in a strong 5-ply corrugated box. Then the whole box is put into another 5 ply box to give it maximum safety.

bloody-baron-5Shrink Wrapped and sealed in plastic bag.

Optional Power Pack B+ Includes

  • 1 Nos. Turnigy D2826-10 1400kV Brushless Outrunner Motor
  • 1 Nos. Hobbyking F-30A 30Amp Brushless Speed Controller
    (2S-4S) with 5V 3A BEC
  • 4 Nos. TowerPro SG90 9Gm Servos.
  • 1 Pair (2Pcs) Gemfan 8×4.5 Slow Fly Propellor
  • 2 Pcs 15Cm Universal Servo Extensions
  • 2 Pcs 30Cm Universal Servo Extensions
  • 2 Pcs 50Cm Universal Servo Extensions
  • 1 Pcs. 15Cm Universal Servo Y Cable
  • 1 Pair (2Pcs) Male/Female XT60 Connectors
  • 3 Pcs. Female Bullet Connectors
  • 4MM Heatshrink Tube approx 10 Cm. Misc Colours.

Specifications

HobbyKing F-30A 30AMP Esc:

  • Constant Current: 30A
  • Burst Current: 40A
  • Battery: 2-4S Lipoly / 5-12s NiXX
  • BEC: 5v / 3A
  • Motor Type: Sensorless Brushless
  • Size: 54 x 26 11mm
  • Weight: 32g
  • Programming Functions:
  • Battery Type: Lipo /NiXX
  • Brake: On / Off
  • Voltage Protection: Low / Mid / High
  • Protection mode: Reduce power / Cut off power
  • Timing: Auto / High / Low
  • Startup: Fast / Normal / Soft
  • PWM Frequency: 8k / 16k
  • Helicopter mode: Off / 5sec / 15sec (Start up delay)

Turnigy D2826-10 1400KV Motor

  • Rpm/V: 1400kv
  • Shaft: 3.17mm
  • Voltage: 2S~3S (7.4v to 11.1v)
  • Weight: 50g
  • Watts: 205w
  • Max Current: 21A
  • ESC: 40A
  • Suggested Prop: 7×4(3S) ~ 9×4.7 (2S)
  • Mounting Hole Bolt Circle: 16mm or 19mm
